Electric-Driven Two-Stage Air Compressors - Value Series

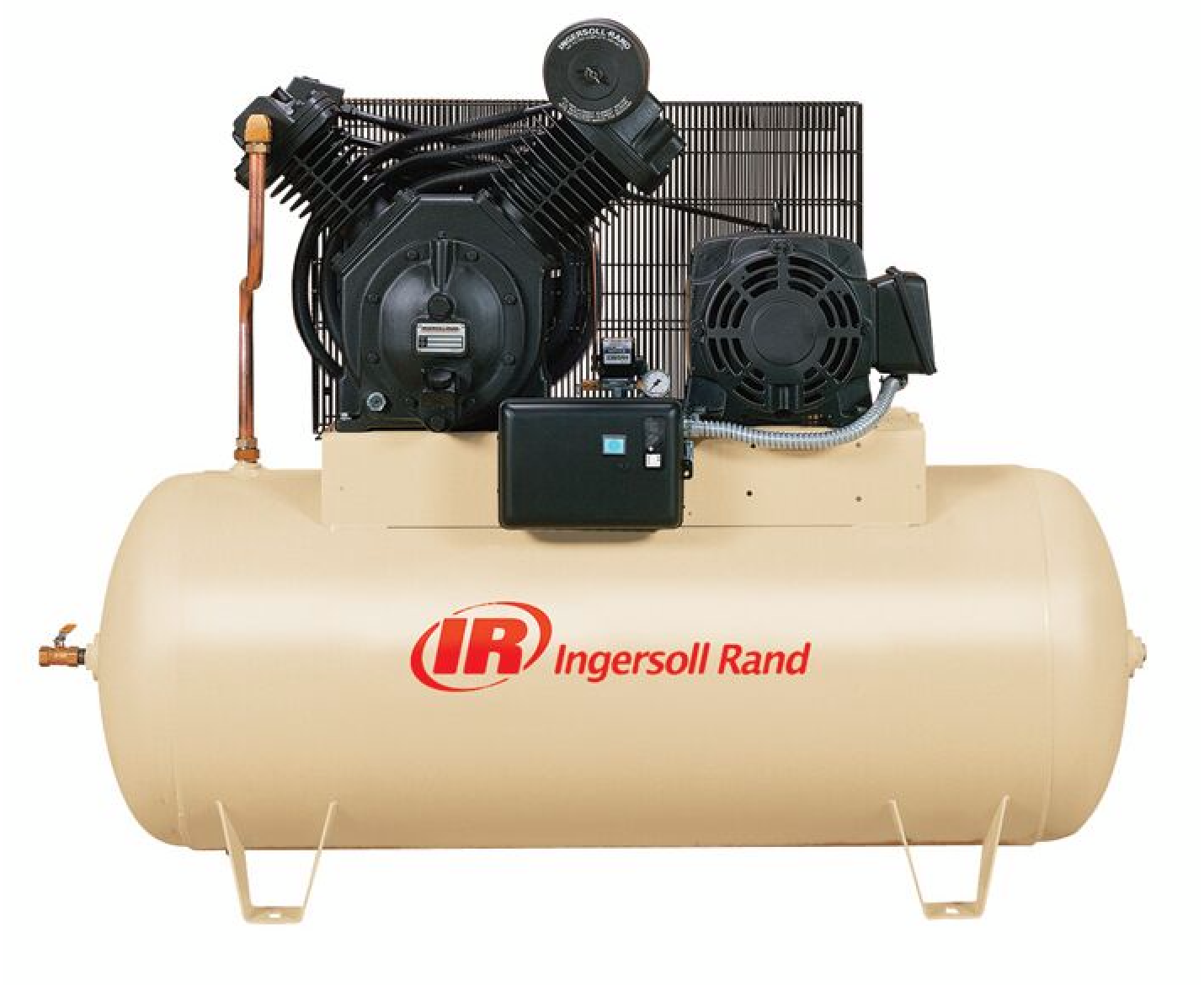

15 HP Ingersoll Rand Premium Series Piston Air Compressors | 120 Gallon Horizontal Tank | 7100E15-VWired for 208-230 or 460 Volt, 3-Phase, 60 Hertz Power
Designed for heavy shop or industrial use, Ingersoll Rand Electric-driven Two-stage air compressors provide the reliability and performance that are ideal for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms.
Features
- Durable cast iron design for 100% continuous duty application
- Precision engineered components for high reliability

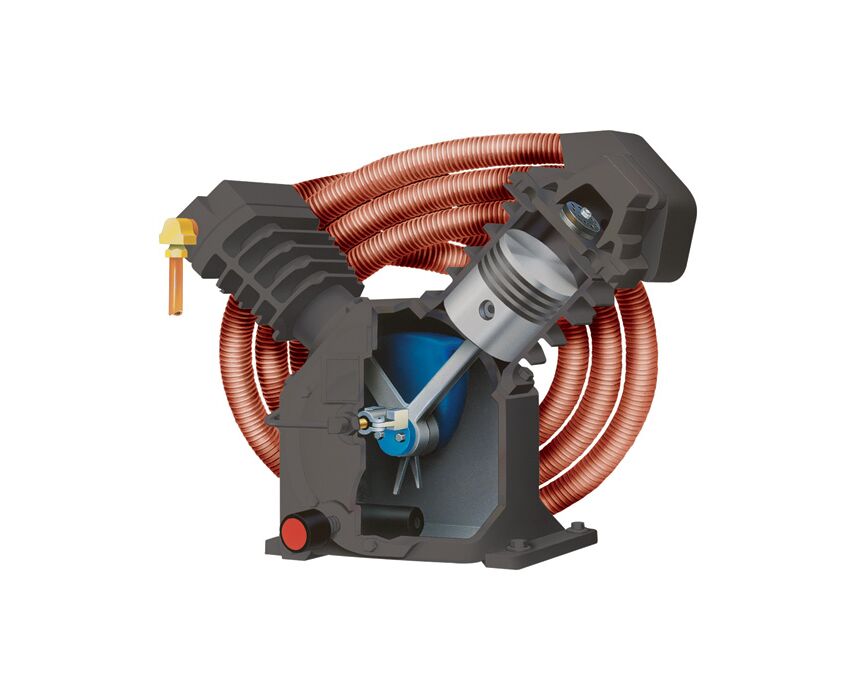

- Individually cast cylinders, overhung crankshaft and one piece connecting rod for ease of maintenance and service
- High efficiency finger valves
- 175 psig maximum operating pressure for applications requiring high air capacity and pressure
- Extended 2 year warranty when used with Ingersoll Rand All Season Select synthetic lubricant
- Choice of Value, Value Plus and Premium packages to suit diversified customer needs
| Value Package | Value Pro Package |
Premium Package | |
| (5, 7.5, 10, 15 HP) | (10 , 15 HP) | (5, 7.5, 10, 15, 20 HP) | |
| 100% Cast Iron Pump |
√
|
√
|
√
|
| ASME Coded Receiver Tank |
√
|
√
|
√
|
| NEMA 1 & ODP Motor |
√
|
√
|
√
|
|
`
|
|||
| Mounted Motor Starter |
√
|
√
|
√
|
|
(except 2340 pump with single phase voltage)
|
(except 2340 pump with single phase voltage)
|
||
| Automatic Start/Stop Control through Pressure Switch |
√
|
√
|
√
|
|
(5 and 7.5 HP only)
|
|||

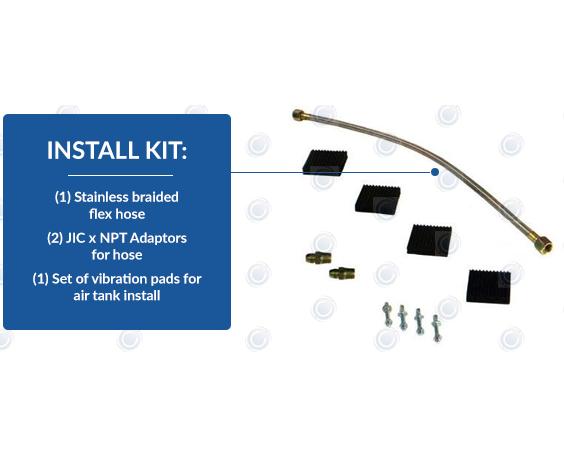

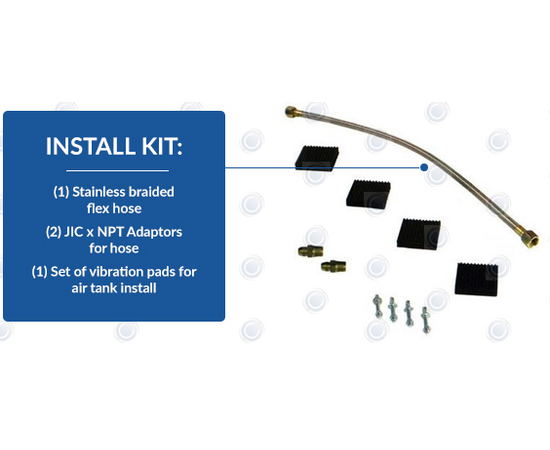

| Vibration Isolators (Available with Purchase of Installation Kit) |
√
|
√
|
√
|
| Oil Sight Glass |
√
|
√
|
|
|
(10 and 15 HP only)
|
|||
| Manual Drain |
√
|
|
|
| Electric Drain |
|
√
|
√
|
| Air Cooled Aftercooler |
|
√
|
√
|
| Low Oil Level Switch |
|
|
√
|
| Dual Control with Centrifugal Unloader |
|
|
√
|
|
(10 and 15 HP only)
|
RECEIPT & INSPECTION
Ensure adequate lifting equipment is available for unloading and moving the unit to the installation site.
CAUTION!
- Lifting equipment must be properly rated for the weight of the unit.
- Lift the unit by the shipping skid only. Do not use the motor lifting eye to lift the entire unit. The motor lifting eye is for removing the motor from the unit only.
- Do not work on or walk under the unit while it is suspended.
Before signing the delivery receipt, inspect for damage and missing parts. If damage or missing parts are apparent, make the appropriate notation on the delivery receipt, then sign the receipt. Immediately contact the carrier for an inspection.
All material must be held in the receiving location for the carrier’s inspection.
Delivery receipts that have been signed without a notation of damage or missing parts are considered to be delivered “clear.” Subsequent claims are then considered to be concealed damage claims. Settle damage claims directly with the transportation company.
If you discover damage after receiving the unit (concealed damage), the carrier must be notified within 15 days of receipt and an inspection must be requested by telephone with confirmation in writing. On concealed damage claims, the burden of establishing that the unit was damaged in transit reverts back to the claimant.
Read the unit nameplate to verify it is the model ordered, and read the motor nameplate to verify it is compatible with your electrical conditions. Make sure electrical enclosures and components are appropriate for the installation environment.
