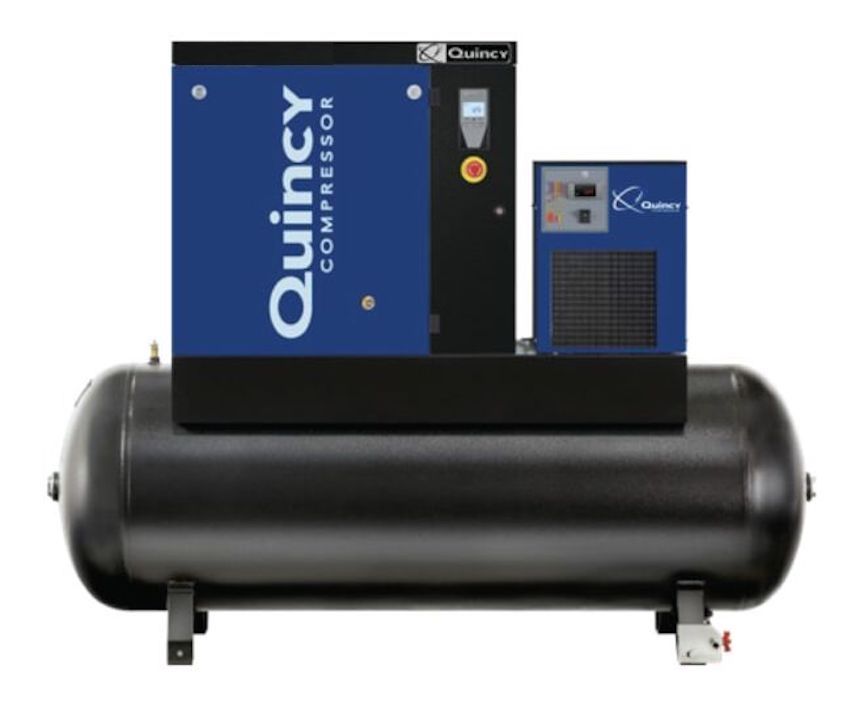

Quincy QGS 5 TMD-3, 5 HP Rotary Screw Air Compressor, 18.1 CFM. 60 Gallon Air Tank & Air Dryer 230 Volt, 3-Phase

QGS 5 TMD-3
(1) Review Add Your Review
In Stock
+
Standard Warranty:
  • 1 Year Warranty
$12,461.00
$9,784.00
You save: $2,677.00
Free Delivery
Compressor World
Brockton, Massachusetts
4.00
(1) Review Visit Seller Store >


ROTARY SCREW TECHNOLOGY FOR EVERY APPLICATION
Quincy understands the critical nature of your compressed air system to maintain production. Quincy's QGS line of compressors help drive your profitability by lowering your total cost of ownership while providing you with the performance and reliability that you have come to expect from Quincy compressors. The QGS air compressor has many of the features, benefits, and advantages of larger compressed air systems in a package that fits your application and at a price you can afford.
ARE YOU USING THE RIGHT TECHNOLOGY FOR YOUR APPLICATION?

With ease of service and reliability in mind, the Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor also operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower noise levels mean increased installation flexibility, making the Quincy QGS ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operationQuincy_Warranty.png

  • Additional Features
    • After Cooler:
      Included
      Air Dryer:
      Included
  • Dimensions And Weight
    • Dimensions (L)(W)(H):
      56" x 23" x 51"
  • Overview And Technical Details
    • Air Dryer Style:
      Refrigerated
      Max Ambient Temperature:
      104 F
      Sound Level:
      62 dB(A)
  • Power Requirements
    • 208/230/1/60:
      -
      208/3/60:
      17.5 FLA
      230/3/60:
      15.2 FLA
      460/3/60:
      7.6 FLA
  • Product Specification
    • Capacity (CFM):
      18.1 CFM @ 145 PSI
      Controls:
      Load/No Load Control System
      Min Ambient Temperature:
      35 F
      Horsepower:
      5 HP
  • Tank Size
    • Air Tank Included:
      Included
  • Warranty
    • Standard Warranty:
      1 Year Warranty
      Extended Warranty:
      5 Year Optional Warranty
Expert Review | Matt Mazanec
Our experts can help

I grew up around the Quincy Product Line and I believe Quincy Compressor makes one of the best rotary screw air compressors.

The Quincy QGS can meet your needs. Featuring the most advanced rotary screw air compressor technology, the QGS serves as a reliable source of compressed air for a wide range of industrial applications. And with the low cost of QGS ownership, this peak-performing screw compressor will have a positive impact on your company’s bottom line.

These Quincy Compressors ship out of Charlotte, NC.

They include the following;

  • TEFC Drive Motors
  • 8,000 hr. Premium Synthetic Fluid
  • Standard Quiet Enclosure
  • Low Oil Carry Over
  • High Efficiency Intake Filter
  • Optional True Blue 5-Year Warranty on the for the motor, cooler, airend and separator tank with a Factory Start Up & Following the Factories Maintenance Requirements

Feel confident with local service support on any Quincy Compressor when you purchase from COMPRESSOR WORLD.

Contact me or any COMPRESSOR WORLD expert if you have any related questions.

QGS-Brochure.pdf (QGS-Brochure_21.pdf, 10,951 Kb) [Download]

Instruction Manual English.pdf (Instruction_Manual_English_1.pdf, 3,819 Kb) [Download]

Great customer service, Help was excellent for choosing the needs of my shop. Compressor is everything advertised very clean, sufficient, state of the art as expected from the name Quincy.
Write a Review

STANDARD QGS WARRANTY

  • 1-Year: Basic Compressor (Twelve months from start-up or eighteen months from factory shipment, whichever comes first)

3-YEAR QGS EXTENDED WARRANTY

  • 1-Year: Basic Compressor
  • 3-Years: Airend
  • 3-Years: Air and Fluid Heat Exchanger
  • 1-Year: Drive Motor
  • 3-Years: Air Fluid Separator Tank

5-YEAR QGS EXTENDED WARRANTY

  • 1-Year: Basic Compressor
  • 5-Years: Airend
  • 5-Years: Cooler
  • 5-Years: Air Fluid Receiver
  • 5-Years: Drive Motor
  • Authorized Start-up Required
