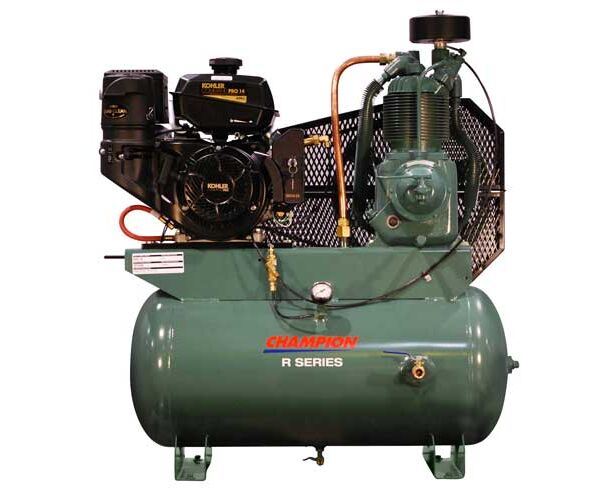

Champion is the leader in manufacturing dependable compressed air systems. Champion offers a complete line of engine driven compressor packages from 8–25 horsepower to meet any application. With an engine driven package there is no need to worry about electrical service. Engine driven air compressors were designed to provide compressed air in remote locations or for emergency production line needs.
Standard Installed Features: Simplex / Base Mount
● Electric Start
● Vibration Isolators on 30 Gal. Units
● Intake Filter / Silencer
● Pneumatic Throttle Control
● Enclosed Belt Guard
● Loadless Startng
Notes:
● Freight prepaid on orders over 400 pounds.
● Electric start engines are supplied less battery.
● All Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC2
Compressor Features
Multi-finned cylinders
Cooler operating temperatures result in longer life and consistent performance over time.
Integral cylinder/head
Gasketless design eliminates the possibility of blown head gaskets for trouble-free operation.
Balanced pistons
Aluminum alloy first-stage piston is weight-matched to the cast iron secondstage piston, ensuring proper balance.
Piston rings
Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.
Lightweight connecting rods
High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision-bored crankpin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.
Pressure relief valves
Located in interstage and discharge.
Intercoolers
Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.
Optimized cooling fan/flywheel
Precision balanced flywheel has fan blades for optimum compressor cooling and life.
Reliable, high-flow valves
Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.
Oversized main bearings
Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.
Balanced crankshaft
Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.
Large capacity crankcase
Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.
Loadless starting
Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
Standard Factory Warranties Apply.
Local service and support available on all related brands.
To maintain specific warranties, please adhere to the terms and conditions outlined by the manufacturer in their warranty document or operation manual.
Please contact one of our experts if you have any questions or concerns.
