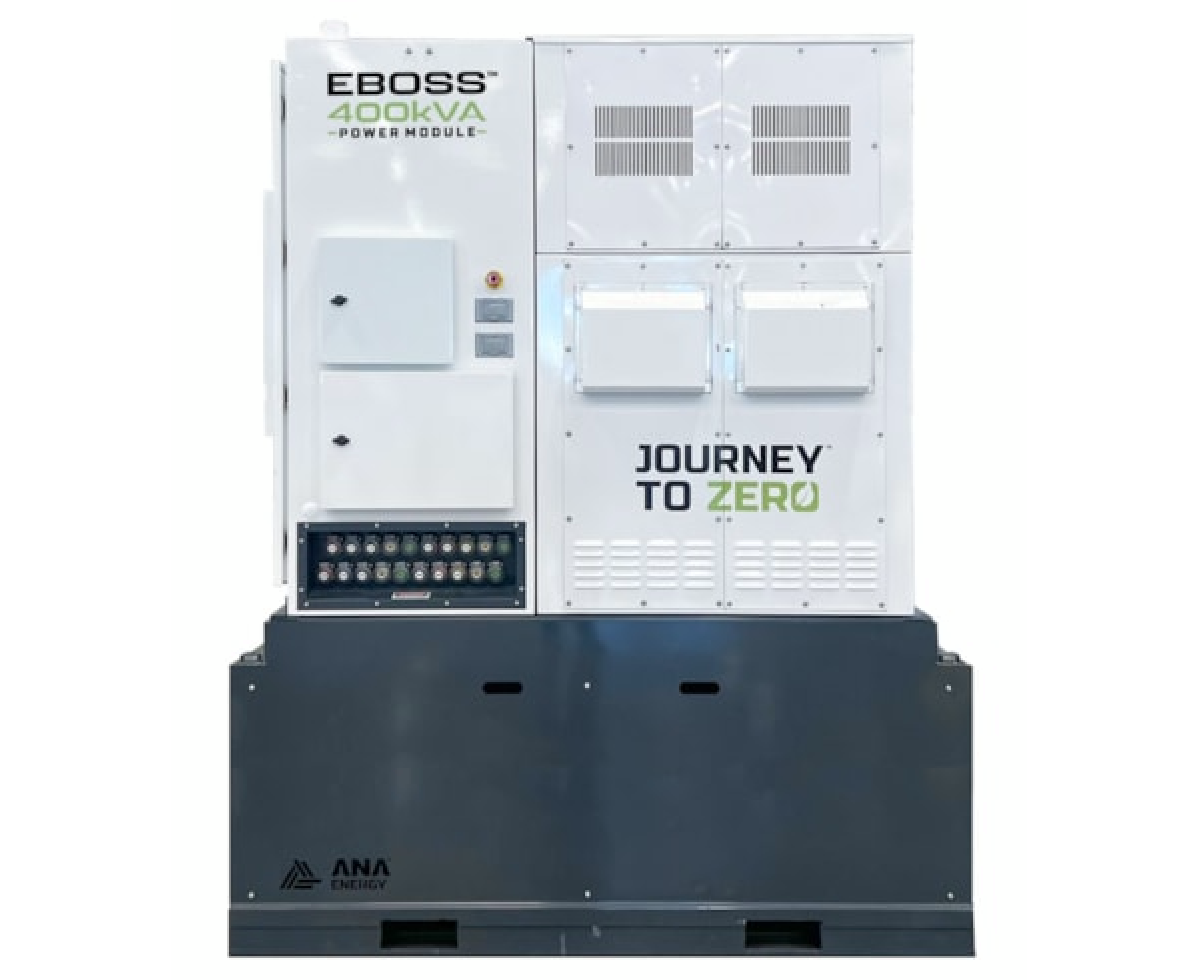

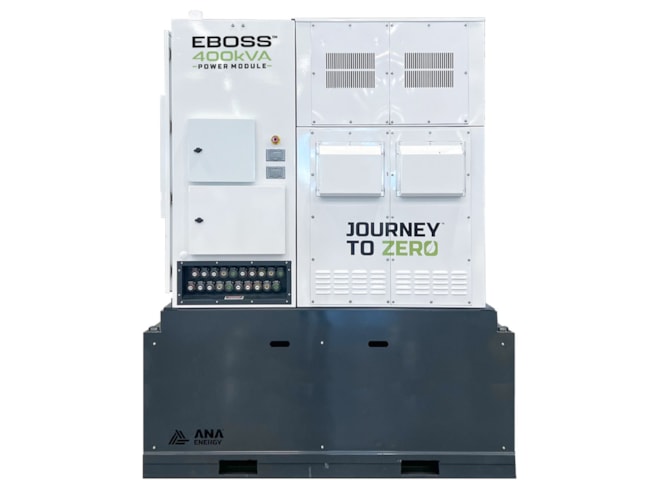

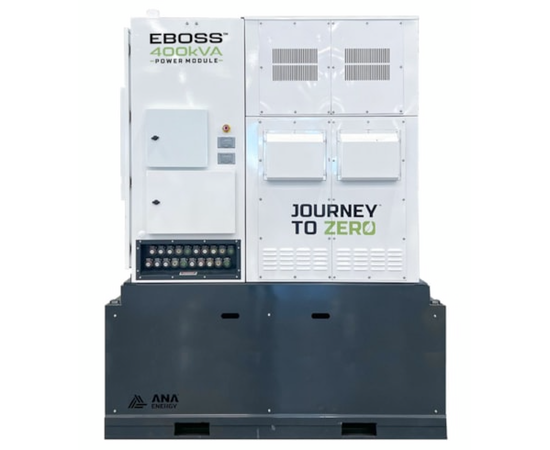

ANA Energy EBOSS 400 kVA, Power Module 400 kVA output, 125 kWh Lithium Titanate Oxide (LTO) battery system.

EBOSS 400 kVA
(1) Review Add Your Review
In Stock
Contact us for a price
Compressor World
Brockton, Massachusetts
4.00
(1) Review Visit Seller Store >

ANA Energy EBOSS 400 kVA, Power Module 400 kVA output, 125 kWh Lithium Titanate Oxide (LTO) battery system.

Improve work capabilities

  • Improved generator life
  • Rapid battery charge rates
  • Widest temperature operating range
  • Single-Phase (110/240V)
  • Three Phase (208/240/480V)
  • All voltages are available simultaneously
  • Quiet power in virtually any environment
  • Increased quiet time
  • Reduced waste and improved ESG scores


Reduction of downtime

  • Removable doors and ample workspace reduce time wasted during service
  • Remote access monitoring & tracking
  • More than 95% of service issues resolved over the phone
  • 93% Same-day parts fulfillment from ANA

Cutback on overhead costs

  • Ultra-high life cycle batteries
  • Extremely long-lived machines that won’t quit
  • Increased dollar utilization with smaller battery
  • Reduced generator run times
  • Less fuel consumption
  • Lower maintenance costs
  • 50% to 80% reduction of operating expenses
  • Cost effective renewable energy source
  • Less precious materials to build batteries
  • Carbon dioxide emissions reduction


ANA’s EBOSS® Power Modules are a groundbreaking innovation transforming power generation and energy management. Built for unparalleled reliability and efficiency, it leverages advanced Lithium Titanate Oxide (LTO) battery technology to seamlessly pair with conventional generators—eliminating the need for complex parallel generator controls. By providing a sustainable solution that achieves 75% to 85% progress toward the 2050 net-zero emissions goal, the EBOSS Power Module meets the 2035 target today.

Equipped with industry-first unlimited parallel capabilities for both generator input and power output, EBOSS Power Modules integrate effortlessly without requiring dedicated controllers or inter-system communication. Its versatility makes it ideal for diverse applications, from powering remote job sites to serving as a backup power solution. The module significantly reduces fuel consumption, lowers emissions, and operates more quietly than standard generators, playing a vital role in accelerating the shift toward sustainable energy

  • Dimensions And Weight
    • Dimensions (L)(W)(H):
      91” x 111” x 69”
      Weight:
      11,037 lbs.
  • Overview And Technical Details
    • Arctic Package Operating Temp (Optional):
      -50°F to 130°F
      Control Panel:
      10” Full Color Touch Screen
      ESG Reporting:
      Yes
      Hybrid Energy System:
      ANA EBOSS™
      Inverter Cold Start Temperature (Min) :
      14°F
      Running Operating Temperature:
      -22°F to 130°F
  • Power Requirements
    • Battery Capacity:
      125 kWh
      Battery Chemistry:
      Lithium Titanate Oxide (LTO)
      Battery Life (100°F @ 3 kW Ave. Load):
      20 Years
      Battery Type:
      Lithium Titanate Oxide (LTO)
      Charge Time (no load):
      ≈ 45 min
      Est Cycle Life @ 100°F Enclosure Temperatures:
      80K Cycles at 90% DOD
      Est. Cycle Life @ 77°F Enclosure Temperatures:
      90K Cycles at 90% DOD
      Inverter Output Max:
      320 kW
      Max. Continuous Amp-Load @ 480V:
      264 A
      Optimal Continuous Load:
      < 125 kW
      Single-Phase Output:
      2.4 kW x 2
      Three-Phase Output:
      210 kVA / 168 kW
      Total Battery Life or Energy Throughout:
      10,000 MWh
      Voltage:
      120V (Courtesy Outlets) • 480 (3Φ)
      Voltage Regulation:
      Adjustable
  • Warranty
    • EBOSS™ ONLY:
      2 Years
      Manufacturer Battery Warranty:
      7 Years
      Service & Support:
      24/7, 365 Days
      Training:
      Henderson, NV or On Location
      ENERGY BOSS™ with Trailer & Generator:
      2 Years, 2000 Hours
