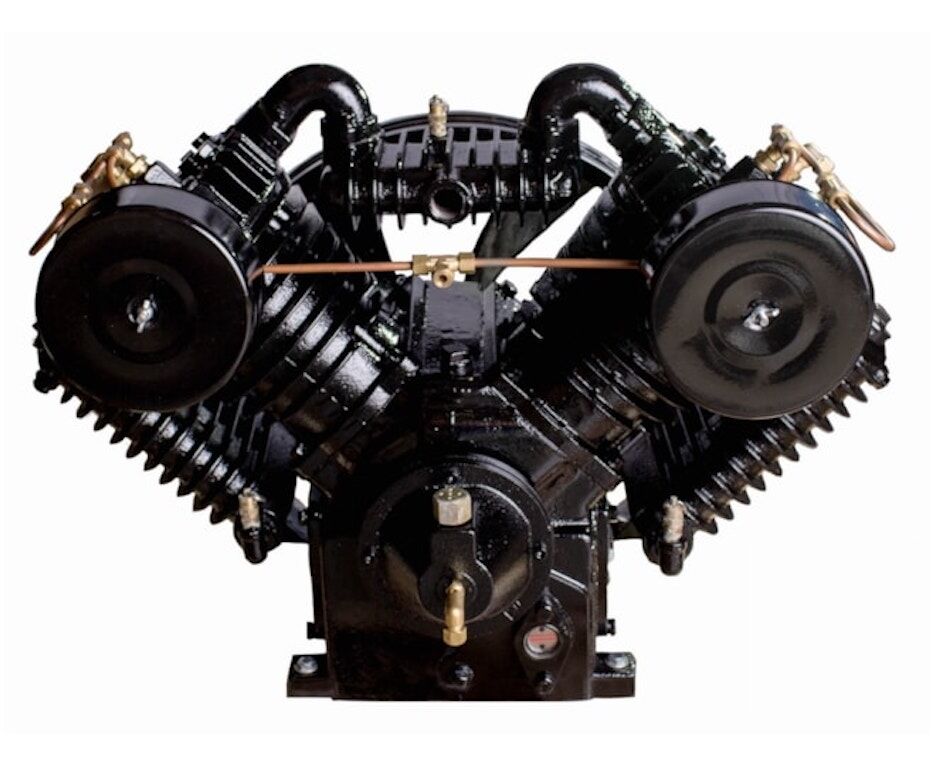

10 HP Two Stage Air Compressor Pump 35 CFM 175 PSI with Flywheel

2105
(1) Review Add Your Review
In Stock
+
$1,525.75
Free Delivery
Compressor World
Brockton, Massachusetts
4.00
(1) Review Visit Seller Store >

10 Two Stage Replacement Air Compressor Pump 35 CFM | 175 PSI | Factory Direct


Standard Features
• 35-CFM @ 175-PSIG
• Heavy Duty Solid Cast Iron Pump for Long Pump Life
• Low RPM & Smooth Running for Maximum Life
• Dual Control
• Large Heavy Duty Intake Filter/Silencer
• Only the Highest Quality Parts and Components
• Pumps Offer Easy service & Maintenance
• 4-Cyclinder Heavy duty industrial air compressor pump
• Two Stage Pump (Two stage pumps offer a maximum pressure of 175-psig.
• Cast iron flywheel included
• Shipping Weight is 278-lbs
• Four-(4) Cylinders for maximum cooling
• Solid cast-iron cylinders, crankcase, flywheel, crankshaft, and valve plates
• Large Steel Automotive-Type Filters – not plastic
• Large site glass for viewing your oil level
• Parts are stock at the factory, immediate shipments are available
• After-Cooler bottle to eliminate pulsations and reduce discharge temperature

10 hp two stage air compressors

10 hp two stage air compressors

Shipping to a Business with Loading Dock

This item ships via a common carrier and needs to be delivered to a commercial business with the means of getting it off the truck.

- Also, please note that Carriers require company name and phone number if a business.

Shipping to a Business with NO Loading Dock

- Please note if you have a fork truck or means of removing the machine from the truck. If you do not have the equipment to remove the machine, we recommend either;

  • Lift Gate Delivery (Which is additional)
  • Ship to the local terminal (You will have to pick it up)

- Also, please note that Carriers require company name and phone number if a business.

Shipping to a Residential Address

- Shipping to a residence is additional. We recommend shipping the product to the local terminal for pick up, this would save you $$ as shipping direct to a residence can be very expensive.

- If you decided to ship to a residence, please note “liftgate” delivery. This will help with the removal of the machine from the truck. (Lift gate delivery is additional)

- Also, please note your name and phone number for contact informatioNew layer...cccc

The main reason you would buy this compressor pump

  • Product Specification
    • CFM @ 175 PSI:
      35 CFM
      Controls:
      Start/Stop Operation (Head Unloaders are Standard)
      Operating Pressure (PSI):
      145 - 175 PSI
      Pump RPM:
      730 RPM
      Pump Type:
      Splash Lubricated
      Horsepower:
      7.5 - 10 HP (Electric)
Expert Review | Matt Mazanec
Our experts can help

The pumps are built with the highest quality and can be direct replacements for many branded compressors.

This replacement compressor pump is for you if you're looking for a direct, inexpensive replacement.

Contact me or anyone in our office if you have any related questions.


Dimensional Drawing (tsm-2105_10_hp_1.pdf, 69 Kb) [Download]

Dimensional Drawing (tsm-2105_10_hp_1.pdf, 69 Kb) [Download]

Pump Installation Example (pump_install_example.pdf, 140 Kb) [Download]

Pump Installation Example (pump_install_example.pdf, 140 Kb) [Download]

Pumps Catalog.pdf (Pumps_Catalog_5.pdf, 965 Kb) [Download]

Great pump for the price, I had to change the piping from my older pump but that was easy, will buy again.
